High Light:
                                                                                                                                                                                                                                                                                                                                                Rotery Printing Long Loop Ager, YONGXIN textile printing machine 420m, Loop Ager 45KW


Condition:	Brand New	Content:	420m
Working Width:	2650mm	Heating Mode:	Steam&Thermal Oil
Material:	Stainless Steel	Automation:	Fully Automatic
Dimension:	9527×4496×5003mm	Power:	45KW
Temperature:	100~102 Degree&180~185 Degree

Condition:	Brand New
Content:	420m
Working Width:	2650mm
Heating Mode:	Steam&Thermal Oil
Material:	Stainless Steel
Automation:	Fully Automatic
Dimension:	9527×4496×5003mm
Power:	45KW
Temperature:	100~102 Degree&180~185 Degree

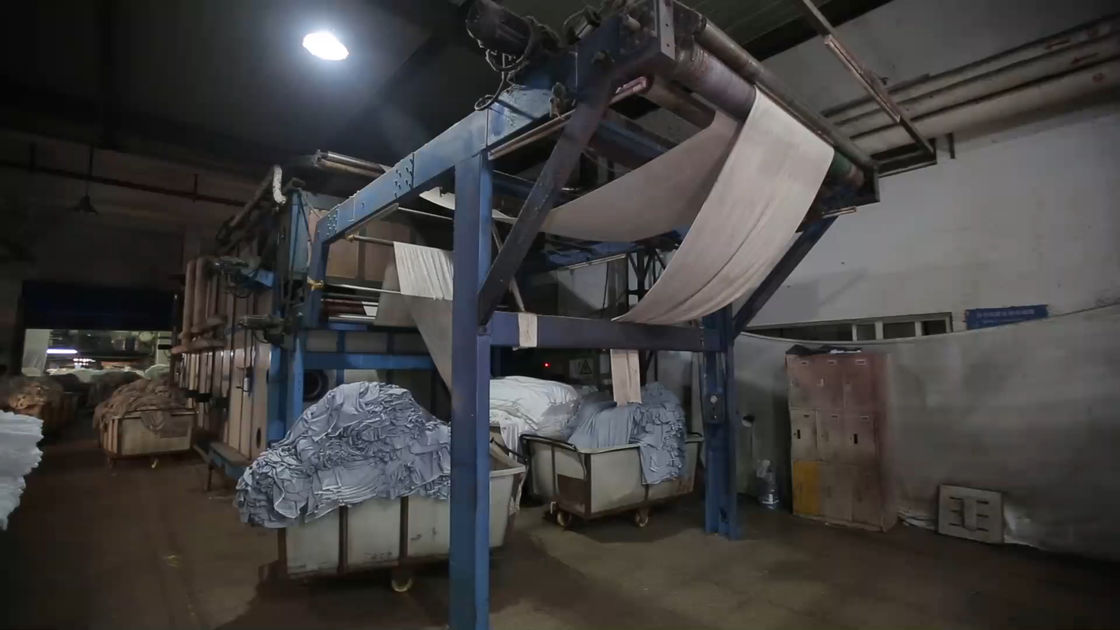

Rotery Printing Long Loop Ager Textile Printing Machine 420m

Long Loop Ager Machine For Disperse Printing

Working width	2650mm
Content	420m
Steam consumption	450-600KG/H
Adjustable loop length	1.5m~3m
Heat Resource	Steam&Thermal Oil
Installed power	45kw
Dimension of machine(LxWxH)	21527×4496×5003mm

`1. Content:420m`

`2. Gearing side:right or left(face the machine,opposite the gate)`

`3. Roller width:2800mm；Working width:Maximum 2650mm`

`4. Suitable fiber:50~500g/m² knitting and weaving fiber`

`5. Loading and unloading:Loading from top,same sides in and out,single loading and unloading`

`6. Machine speed:5~70m/min`

`7. Dimension:L×W×H(mm) 21527×4496×5003(just for reference)`

`8. Loop length:1.5m~2m can be adjustable`

`9. Temperature difference from right and left wall:±1﹪℃`

`10. Gearing:Frequency inverter,Frequency motor`

`11. Control:PLC from Siemens, touch screen computer from Kinco`

`12. Running method:Continuous`

`13. Power capacity:45Kw`

`14. Heating resource:Steam&Thermal Oil only`

`15. Dwell time:10-15mins for reactive process,5-8mins for disperse process`
